Home > Products > Sport Flooring >

Customized PVDF Architectural Membrane For Global Engineering Supply

Place of Origin:

China

Brand Name:

Relle

Certification:

CE&SGS

Model Number:

PVDF

Request A Quote

Product Details

Surfacetreatment:

PVDF

BaseFabricConstruction:

100%PET

Yam:

HighstrengthPolyester1100/2200Dtex

Weight:

1350(+20,-20)g/m²

Thickness:

1.0~1.03mm

Tensilestrength(warp/weft):

8000/7000N/5cm

TearStrength(warp/weft):

1050/950N

AdhesionStrength:

130/125N/5cm

Adhesion:

13daN/5cm

DINstandard:

Customized PVDF Architectural Membrane For Global Engineering Supply

Get Best Price

PVDF Functional Membrane For Outdoor Construction Engineering

Get Best Price

Waterproof Breathable PTFE Membrane for Stadium

Get Best Price

PTFE Membrane Material for Stadium Roof Waterproof and Anti Corrosion PTFE Membrane for Long Span Building

Get Best Price

+8618603080392

ritazhou@relleflooring.com

Contact Now

Product Description

Customized PVDF Architectural Membrane For Global Engineering Supply

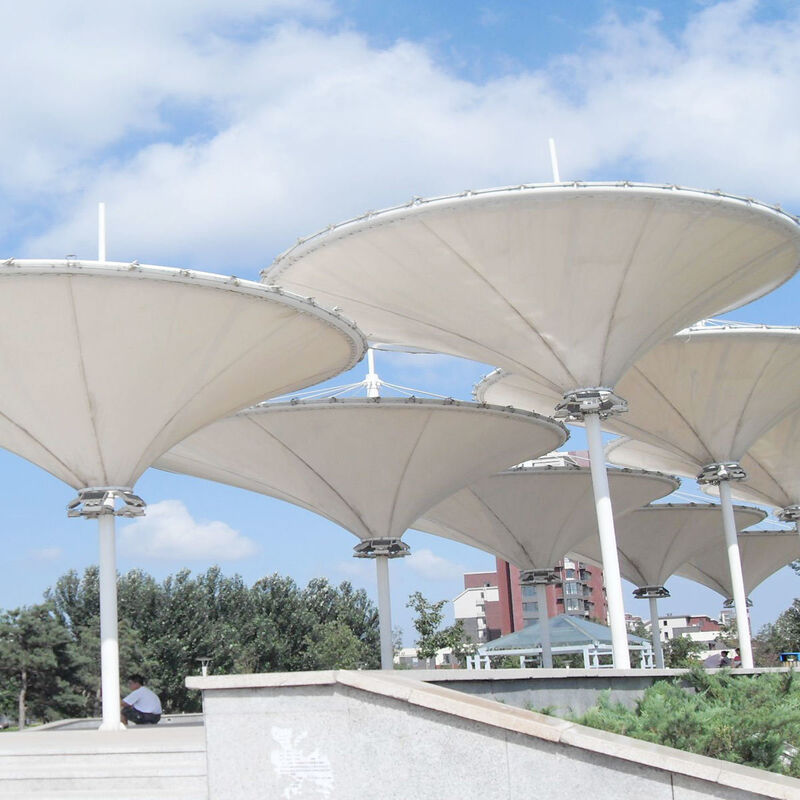

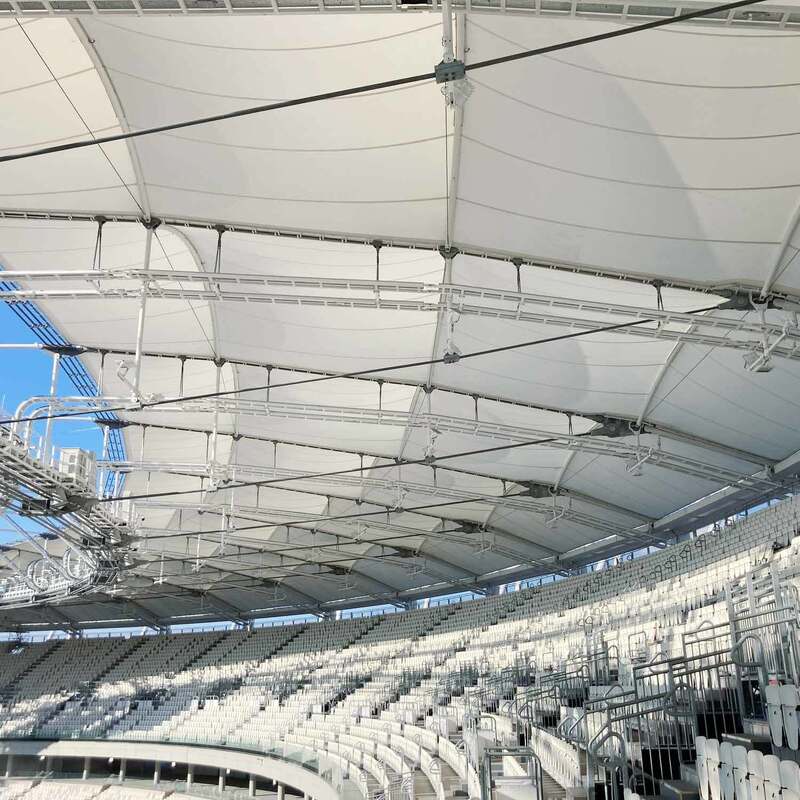

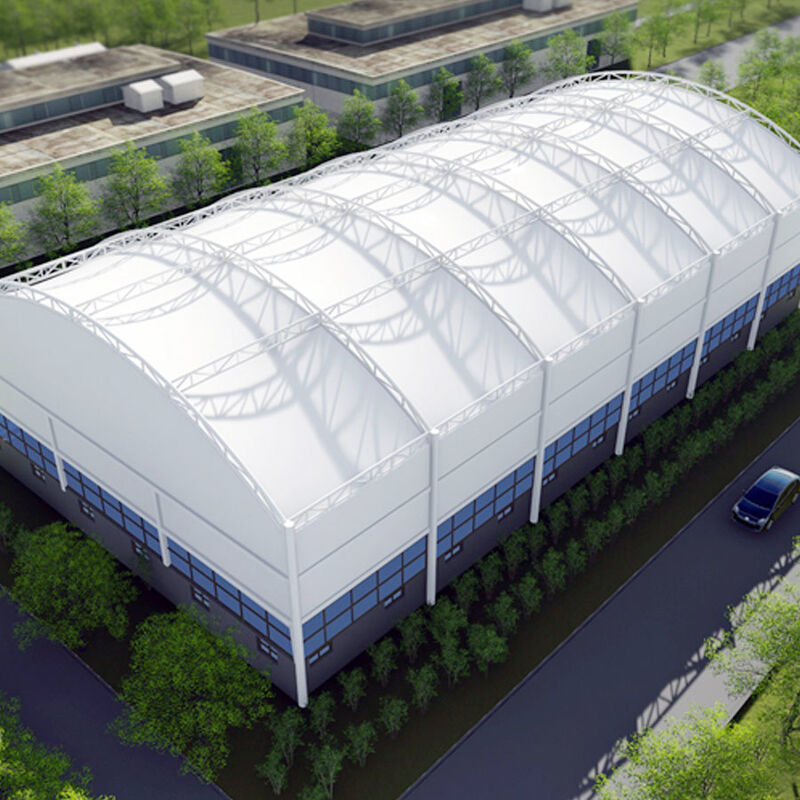

This PVDF building membrane has standard thicknesses 1.0mm to 1.03mm, widths 1000mm to 1800mm and lengths 50m 100m. Customizable colors are offered. It boasts excellent weather UV resistance self cleaning high strength flame retardancy and heat insulation, and is workable for stadium roof wall and tension membrane structure.

Specifications

Surface Coating - The outermost layer, designed to resiststains and wear for long-term durability.
PVDF Functional Layer - The core layer that providesexcellent weather resistance, including UV and corrosion protection.
Base Fabric Layer - The structural foundation, made ofhigh-strength polyester to enhance mechanical strengthand tensile performance.
Back Coating - The bottom layer, which bonds the structuretogether and protects the base fabric from moisture anddamage.

Details

Customized PVDF Architectural Membrane For Global Engineering Supply 1

Customized PVDF Architectural Membrane For Global Engineering Supply 2

Customized PVDF Architectural Membrane For Global Engineering Supply 3

Document

Relle data sheet for PVDF membrane.pdf
